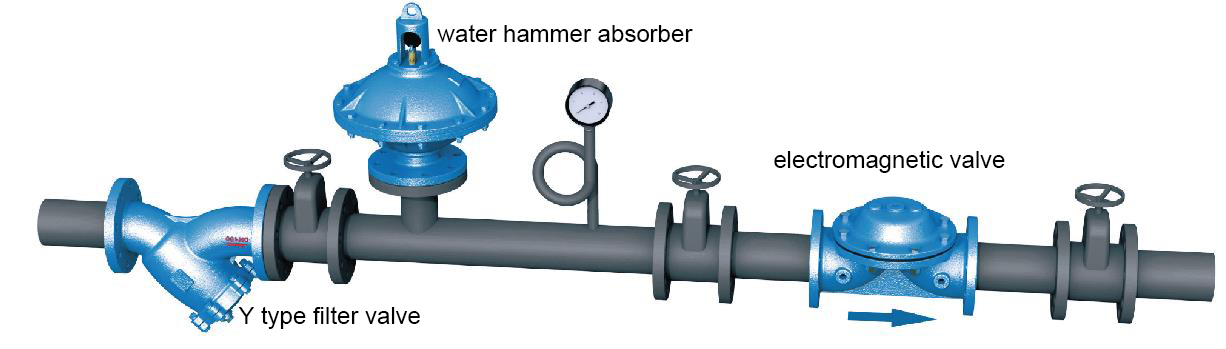

Working pressure level | Interface form and standard | Temperature, medium | Pilot parameters |
PN10/PN16/PN25/150LB/10K/16K | Flange connection, in accordance with: GB / ANSI / BSEN / ISO / DIN / JIS | 0 ℃ ~ 80 ℃ normal temperature water | Voltage range: 110V / 220V, 50 ~ 60Hz, AC, use mode: normally open / normally closed |
Part name | Material |
Valve body | Ductile iron / stainless steel |
Valve cover | Ductile iron / stainless steel |
Spring | Stainless steel |
Diaphragm | NBR / VITON |
Ball valve | Brass / stainless steel |
Needle valve | Brass / stainless steel |
Filter | Brass / stainless steel |
Solenoid pilot valve | Brass / stainless steel |
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
L | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 850 | 1100 | 1100 | 1250 | 1450 |
H | 139 | 159 | 179 | 214 | 214 | 333 | 407 | 476 | 526 | 526 | 624 | 624 | 720 | 835 |
H1* | 85 | 95 | 102 | 112 | 127 | 145 | 172 | 205 | 232 | 262 | 292 | 325 | 360 | 425 |
ФK | 173 | 198 | 226 | 265 | 265 | 351 | 436 | 524 | 606 | 606 | 741 | 741 | 1002 | 1308 |
S | 3/8" | 3/8" | 3/8" | 1/2" | 1/2" | 1/2" | 3/4" | 1" | 1" | 1" | 11/2" | 11/2" | 2" | 2" |
Weight(Kg) | 14 | 19 | 23 | 32 | 45 | 68 | 125 | 200 | 260 | 310 | 560 | 620 | 880 | 1300 |
