Slowly closed check valve
Product model:W816/836
        Juhan Valve's W816 / 836 slow-closing check valve has a diaphragm-type control valve that opens and adjusts the closing speed. Through hydraulic control, when the inlet pressure rises above the valve opening pressure, the valve opens slowly to avoid shock. When the reverse pressure is generated, the liquid will enter the upper air chamber of the valve, and the valve closes slowly to form a tight seal. The opening and closing speed can be adjusted by the opening degree of the piping needle valve.
         This valve is especially suitable for applications where absolute sealing is required. The rubber sealing ring can ensure that the valve does not leak. In addition, the simple design of the valve can also ensure the reliability of the valve.
Product Highlights
        Gentle action, no impact, easy to adjust and maintain, excellent and reliable sealing performance, controllable opening speed and closing speed, piping is equipped with filter device to prevent clogging.

Product parameters
Working pressure level Interface form and standard Temperature, medium
PN10 / PN16 / PN25 / 150LB / 10K / 16K Flange connection, in accordance with: GB / ANSI / BSEN / ISO / DIN / JIS 0 ℃ ~ 80 ℃ normal temperature water

Part name Material
Valve body Ductile iron / stainless steel
Valve cover Ductile iron / stainless steel
Spring Stainless steel
Diaphragm NBR / VITON
Ball valve Brass / stainless steel
Needle valve Brass / stainless steel
Filter Brass / stainless steel
Check valve Brass / stainless steel

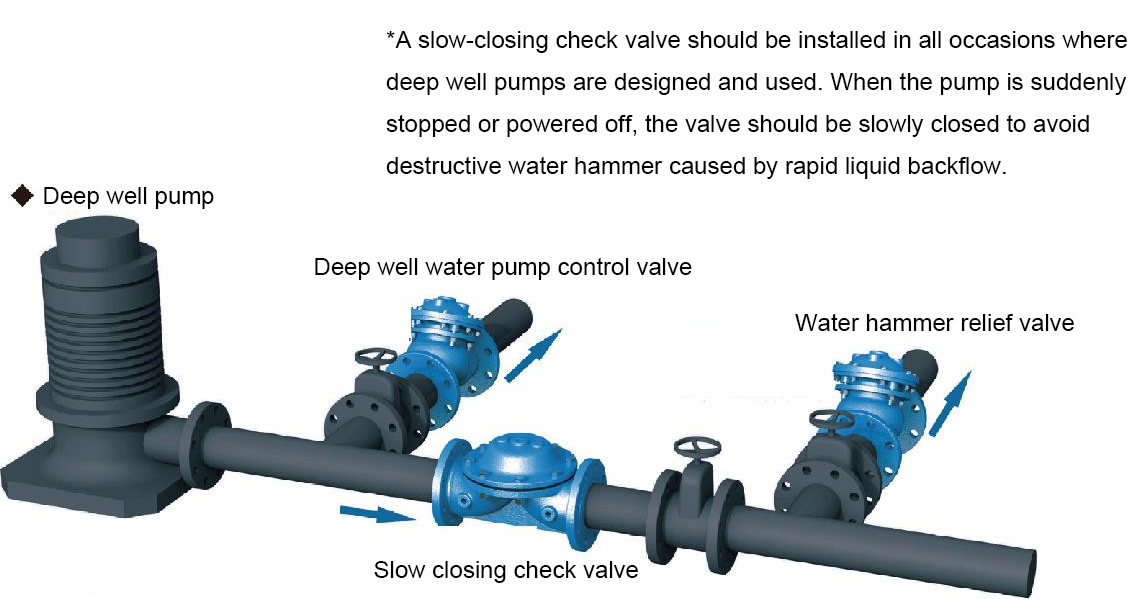

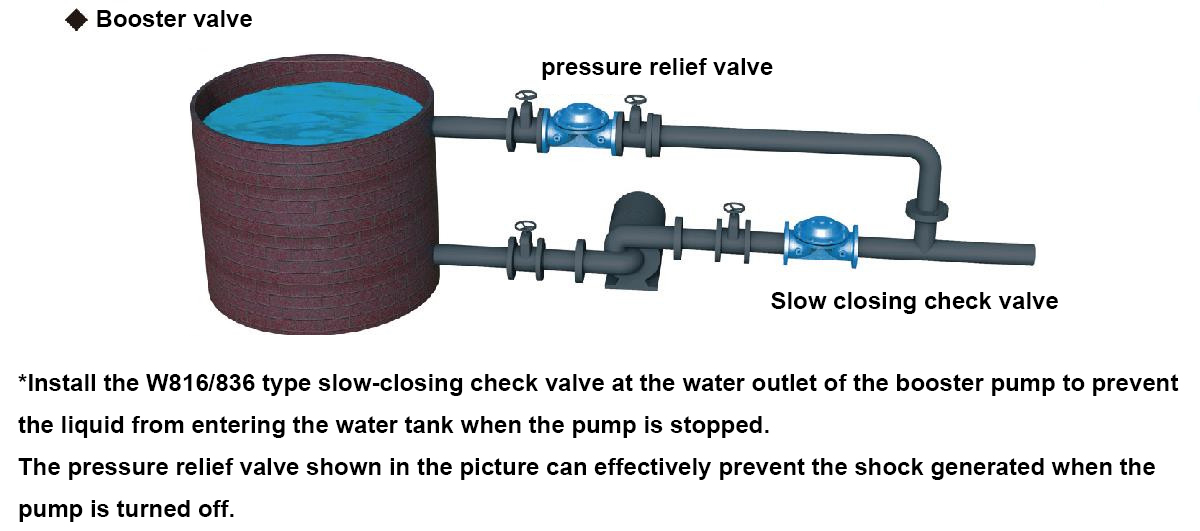

Applications
