Flow regulating valve
Product model:W817 / W837
      Juhan Valve's W817 / 837 differential pressure valve is a fully automatic, hydraulic control valve. It is designed to maintain the pressure difference between the two pipelines to avoid pipeline pressure differences exceeding the system's tolerance range due to other valve actions or changes in demand. The valve will open when the differential pressure increases, and will close automatically when the differential pressure decreases.
         If the optional non-return feature is selected, when the reverse pressure is generated, the returned liquid will enter the upper air chamber to close the valve, preventing the liquid from returning.

Product Highlights
        Precise differential pressure control, easy to adjust and maintain, excellent and reliable sealing performance, piping is equipped with filter device to prevent clogging.
Product parameters
Working pressure level Interface form and standard Temperature, medium Pilot parameters
PN10 / PN16 / PN25/ 150LB / 10K / 16K Flange connection, in accordance with: GB / ANSI / BSEN / ISO / DIN / JIS 0 ℃ ~ 80 ℃ normal temperature water Pressure range:0.2~2.5 kg/cm2, 5~9 kg/cm2,

Part name Material
Valve body Ductile iron / stainless steel
Valve cover Ductile iron / stainless steel
Spring Stainless steel
Diaphragm NBR / VITON
Ball valve Brass / stainless steel
Needle valve Brass / stainless steel
Filter Brass / stainless steel
Differential pressure control valve Brass / stainless steel

Applications

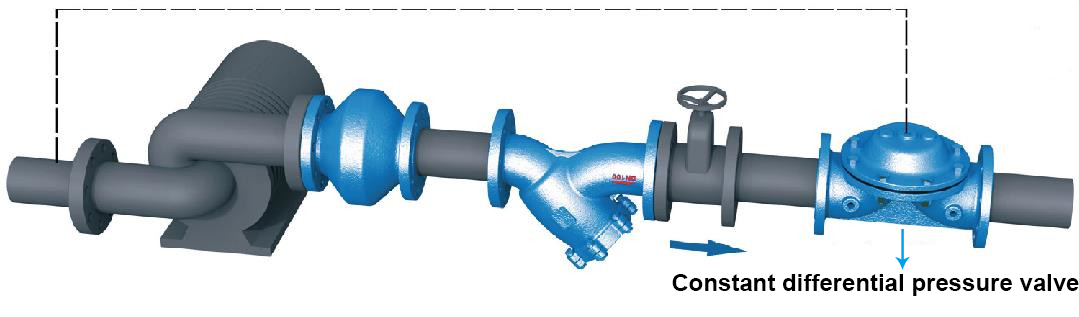

        The differential pressure bypass valve can maintain the pressure difference of the flow through the centrifugal pump. No matter how the upstream supply or the downstream demand changes, the pressure difference can always be maintained within a certain range. By controlling the pressure difference across the centrifugal pump, the flow of the pump can be controlled.

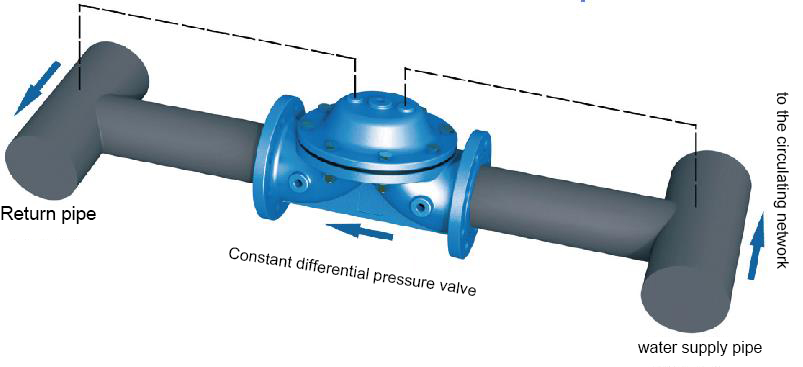

      Install the W817/W837 differential pressure bypass valve in the circulating water system, as shown in the figure. It can ensure the pressure difference between the supply pipe and the return pipe, and no matter how the flow changes, how the supply pressure changes, the pressure difference between the two pipes is constant.
