Diffuser
Product model:W513/W533
        The W513 / W533 diffuser of Juhan valve is installed on the suction side of the pump. The included angle between the inlet and outlet is 90 °, and there are two PT1 / 4 "ports on the inlet and outlet, which can measure the pressure or temperature. The total area of the overflow is more than 5 times the diameter of the outlet port, which fully meets the water demand of the pump. The filter is outsourced with a 20-mesh stainless steel woven mesh, which can block most of the small impurities of the new system just started. Valves are reserved There are drain outlets and bosses for welding brackets.

Product Highlights
        The built-in guide wing of the valve makes the liquid more stable. The built-in protection filter prevents the small debris in the new system from entering the pump. It can provide diffusers with the same diameter or different diameter for the inlet and outlet. , Save cost and space; the filter with a larger flow area than the traditional filter, the opening rate of the filter can reach 63%.

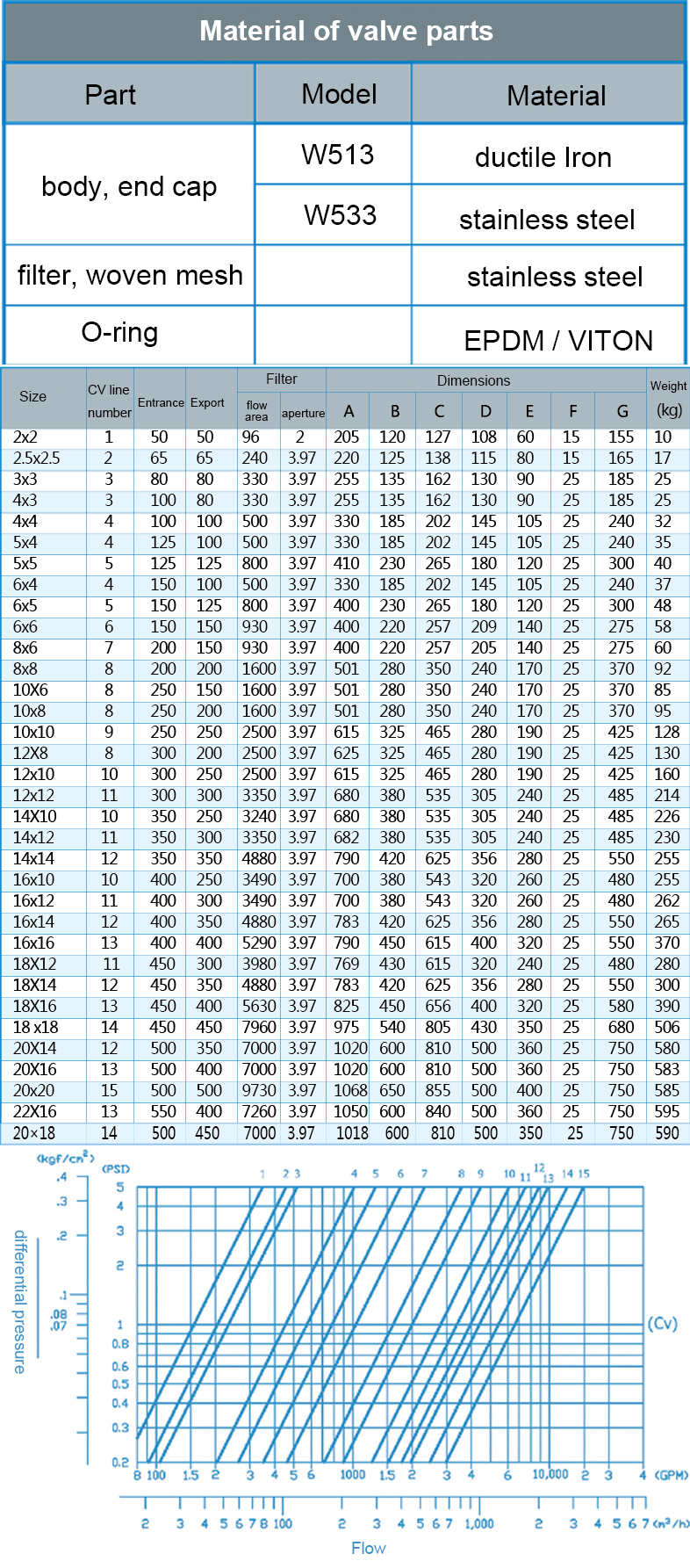

Product parameters
Working pressure level: PN10 / PN16 / 150LB / 10K / 16K
Temperature and medium: 0 ° C ~ 80 ° C
* If you have other operating temperature or media, please contact the factory
Interface type and standard: flange connection
Compliant: GB / ANSI / BSEN / ISO / DIN / JIS
* Different specifications of import and export flanges can be customized.

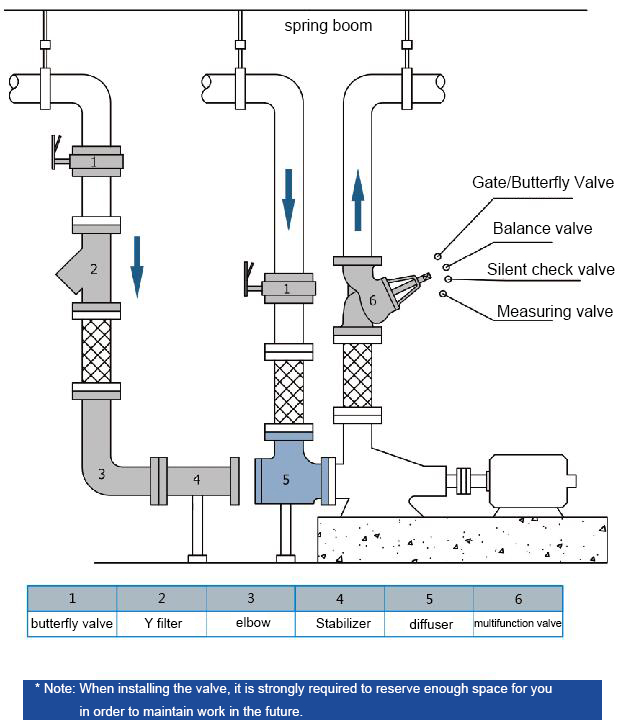

Applications
