Multi-function valve
Product model:W700/W703
        Juhan valve's W700 / W703 multi-function valve can achieve multiple functions on the same valve body. First of all, it can be used as a silent check valve; it can also be used as an on-off valve; the multi-function valve has a scale plate, its opening stroke can be adjusted, and it has a function of balancing water volume; the valve inlet and outlet sides are reserved for Connection for measuring system pressure or temperature (PT1 / 4 ").
         The valve uses a unique U-shaped seat, which makes the valve have good adjustable performance. And no special tools are needed to maintain the valve online. The multifunctional valve integrates some functions of butterfly valve, balance valve, silent check valve and measuring valve. Can shorten the installation time, reduce the installation space, and save installation costs.

Product Highlights
       Position indicator, no need for lubrication, reserved test connection port, detachable cover design, easy valve online maintenance, horizontal or vertical installation, O-ring + packing seal to ensure no leakage, multiple functions in one Save on total procurement costs.

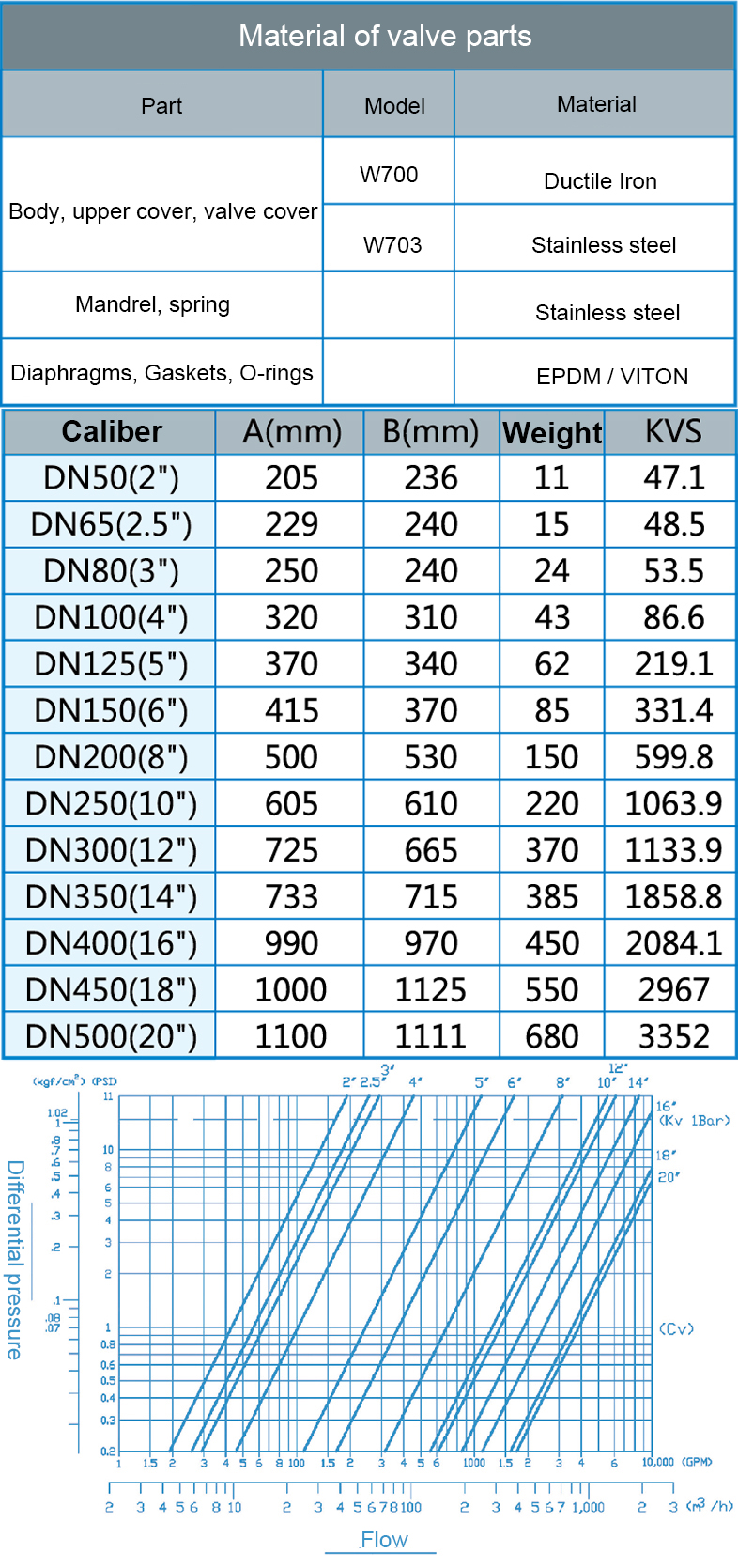

Product parameters
Working pressure level: PN10 / PN16 / 150LB / 10K / 16K
Please provide when ordering:
Valve Model / Valve Size / Pressure Level /
Interface type / use pattern / other optional accessories
Temperature and medium: 0 ° C ~ 80 ° C
* If there are other operating temperatures or media, please contact the factory.
Interface type and standard: flange connection
Compliant: GB / ANSI / BSEN / ISO / DIN / JIS

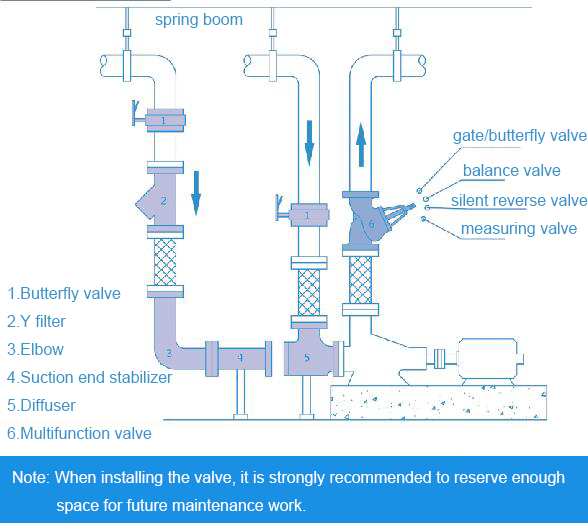

Applications
relevant information
